Under Review | Le Mans M.Y. 2022: the Parolin kart specific for direct drive classes

2
go down go up

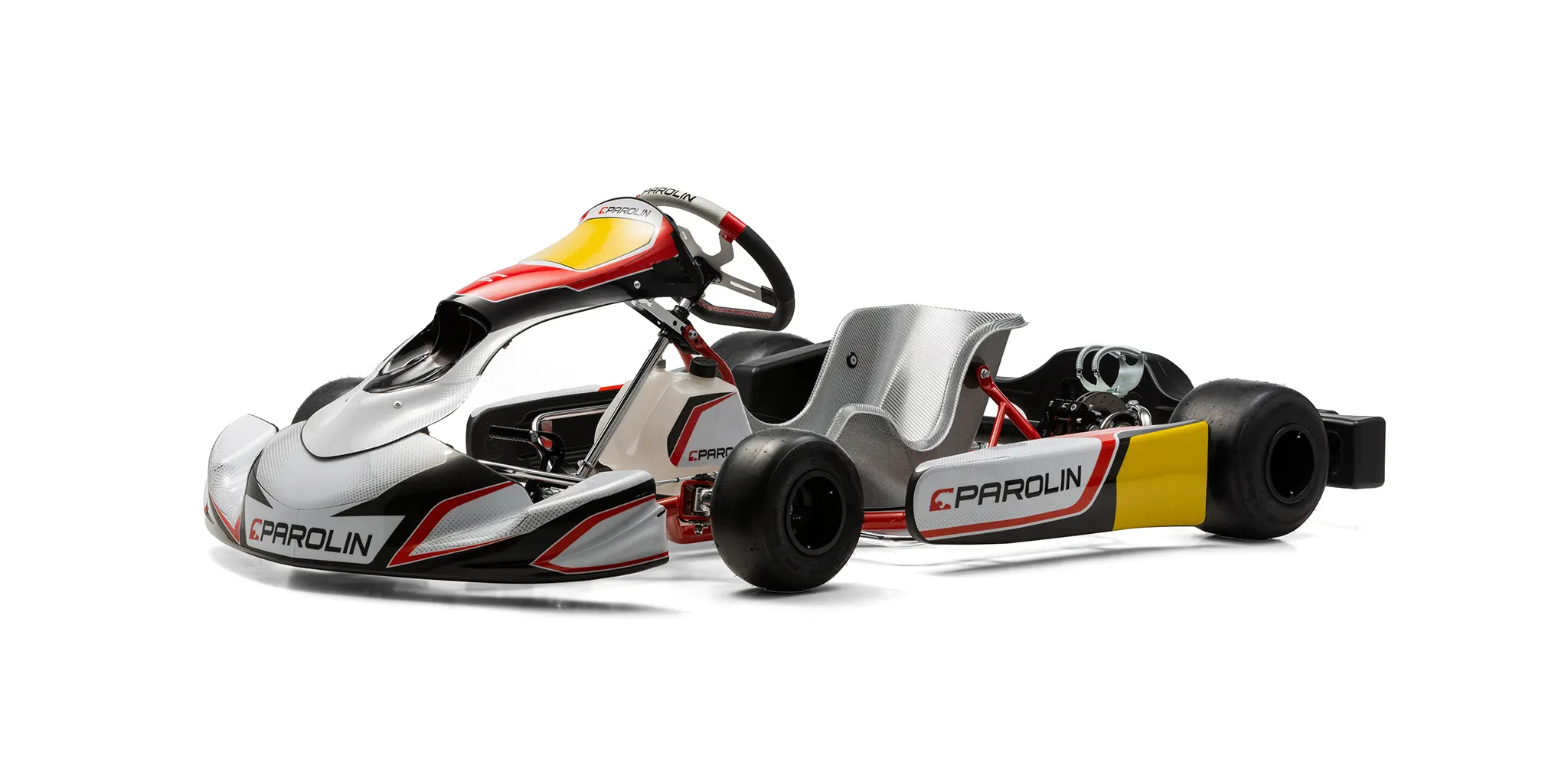

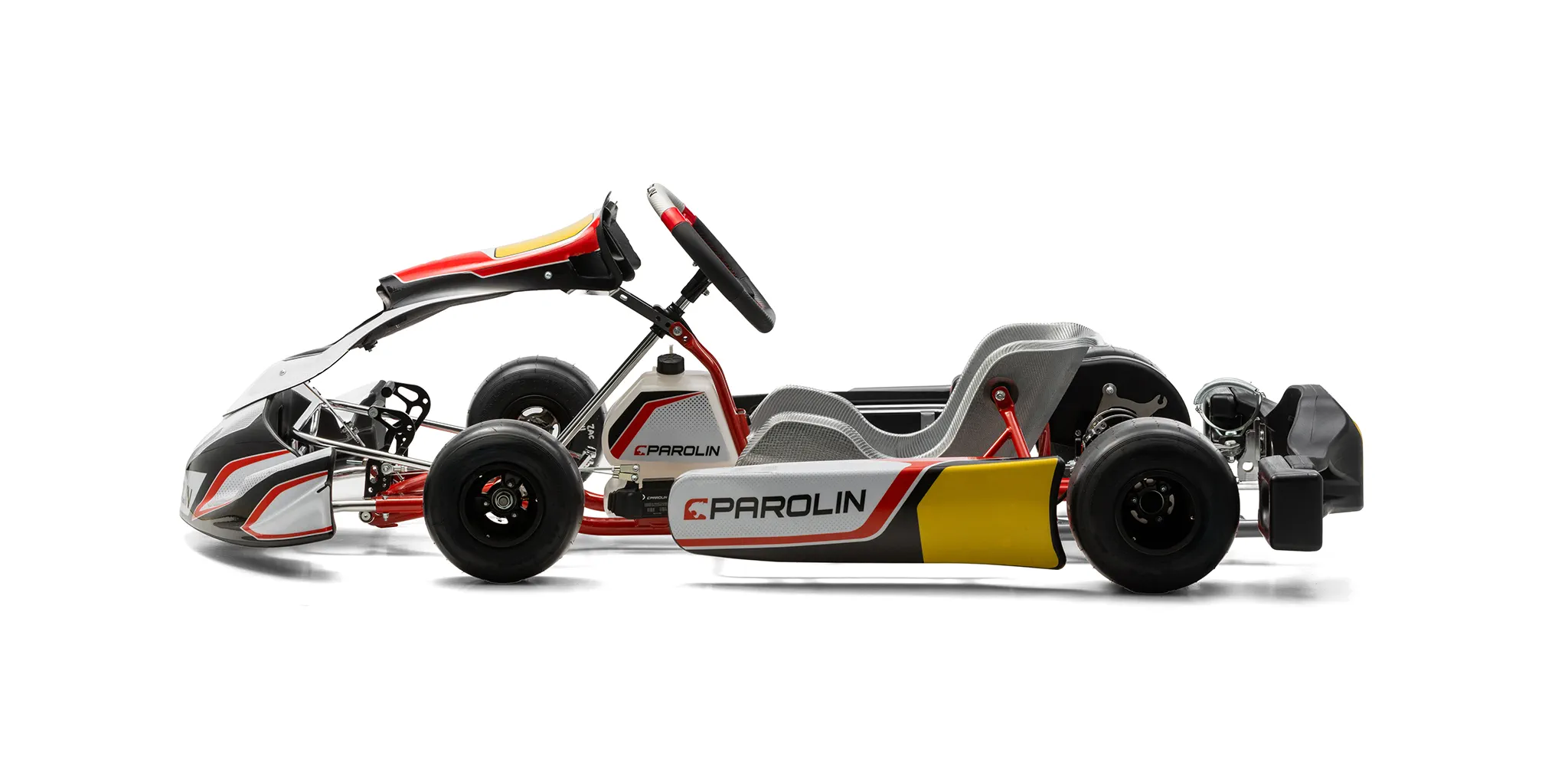

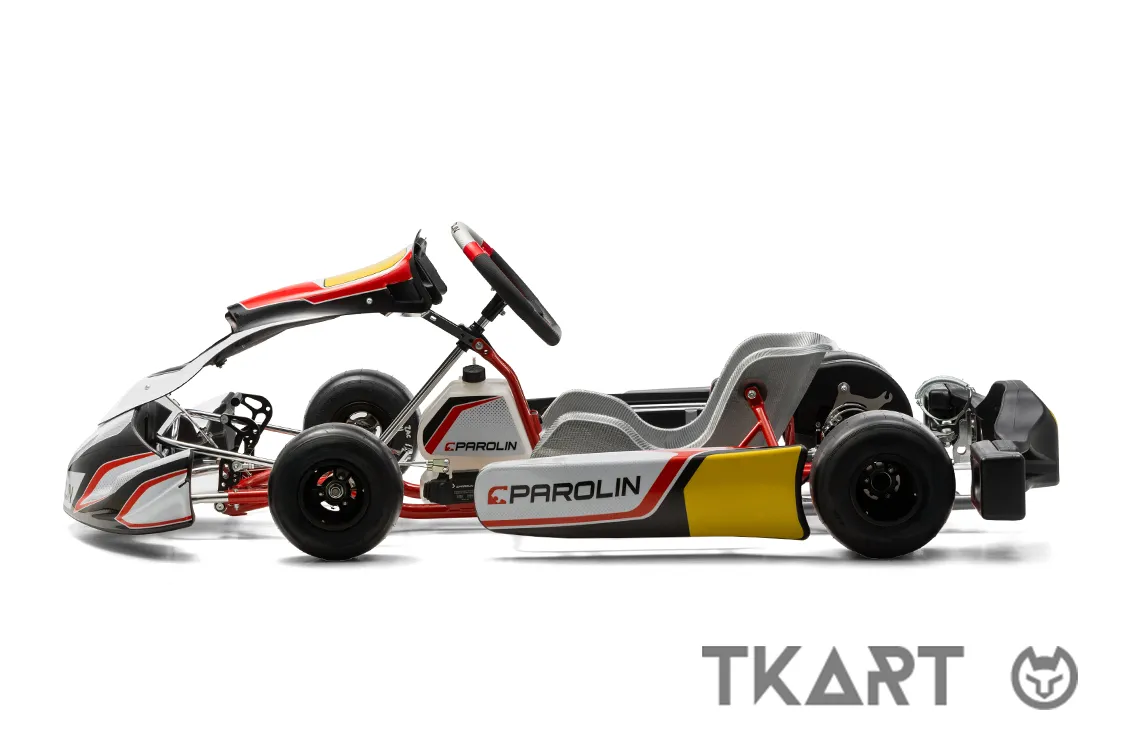

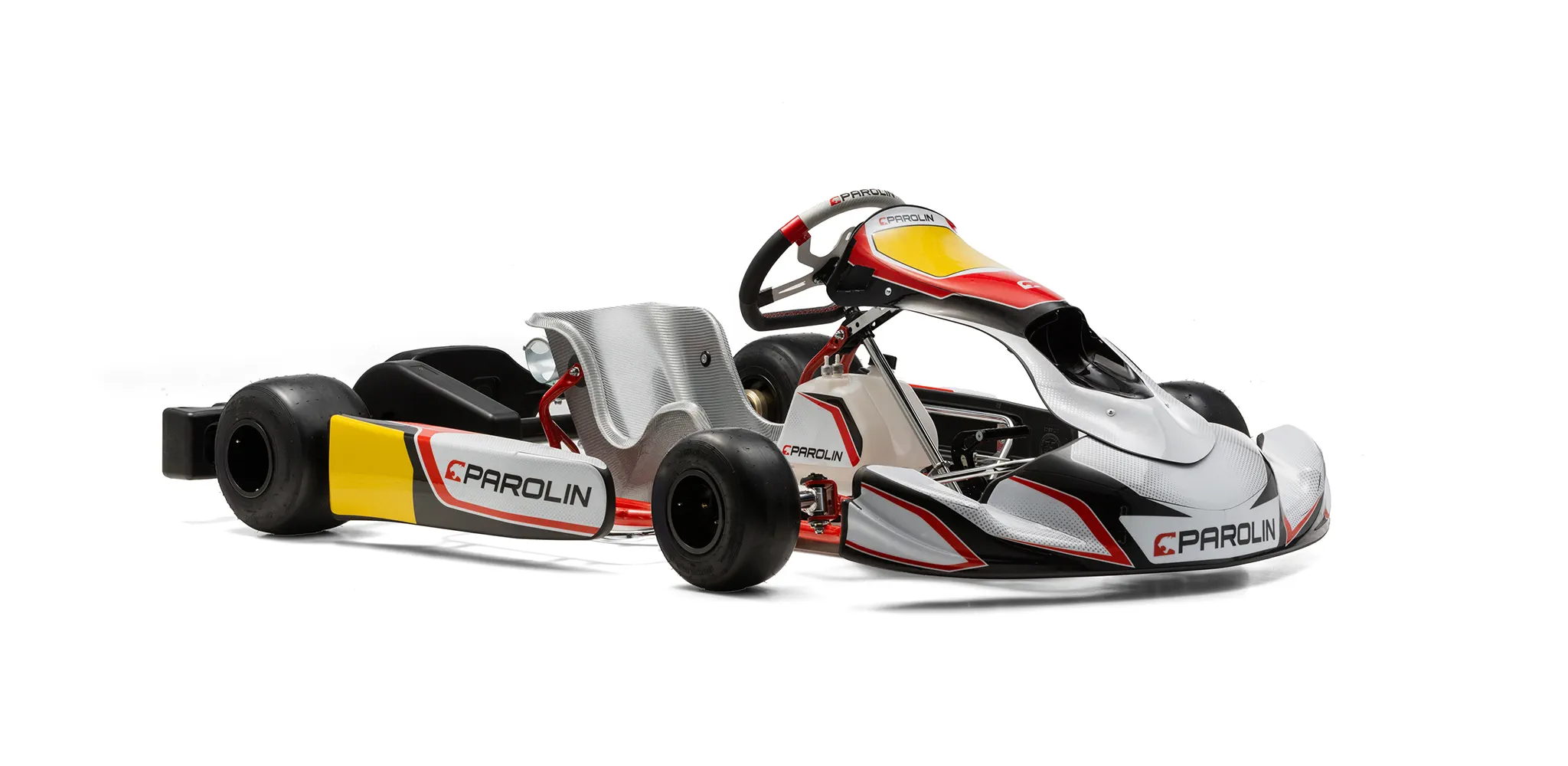

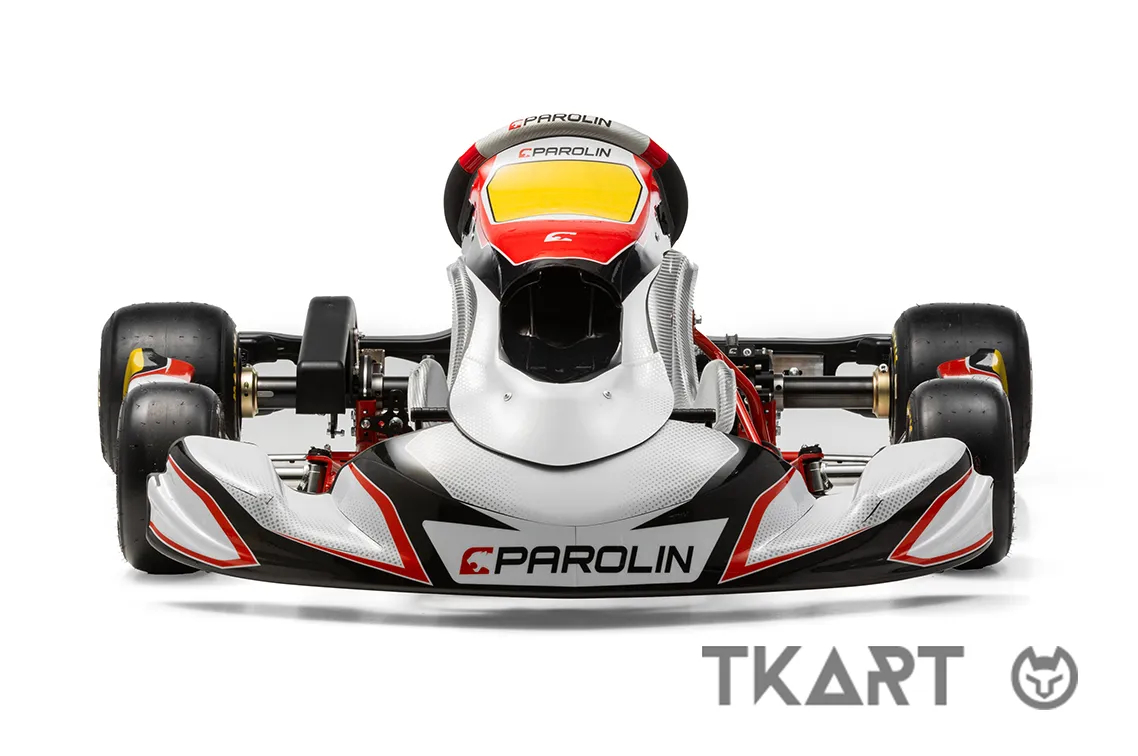

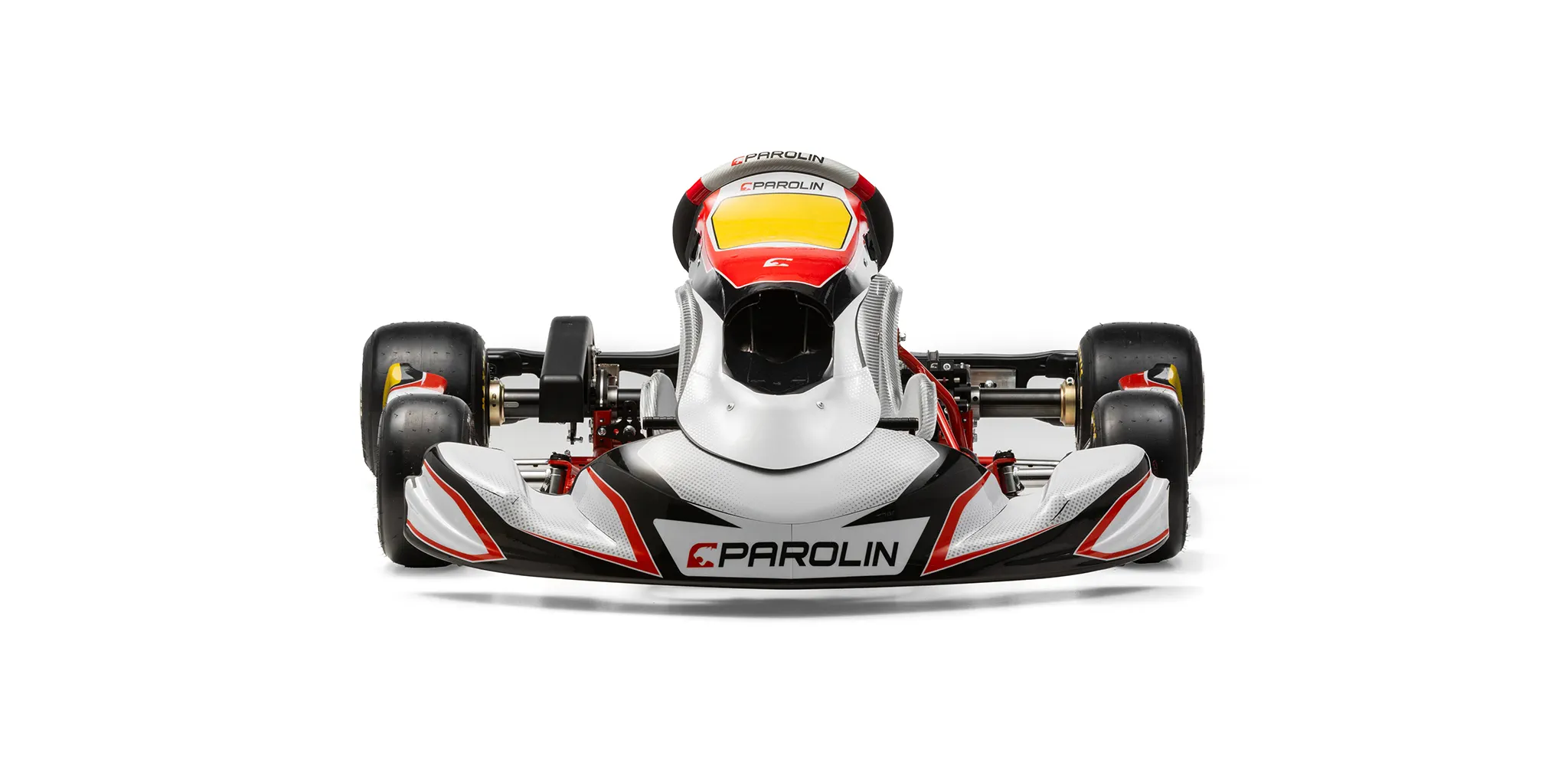

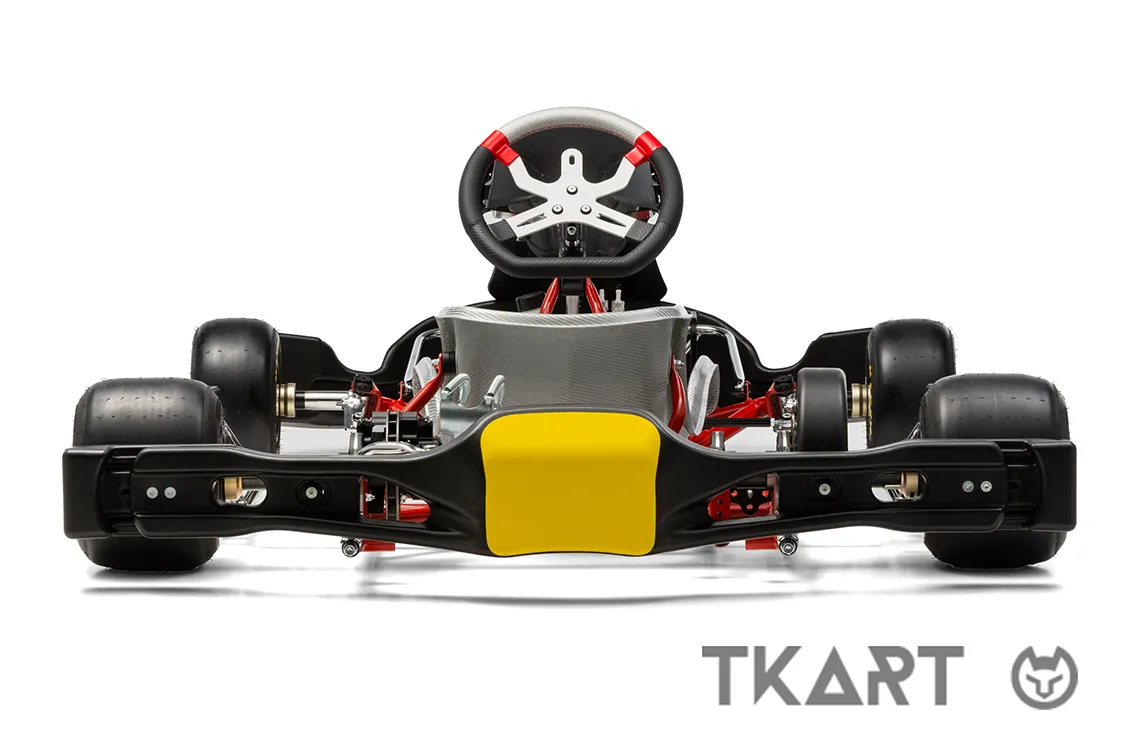

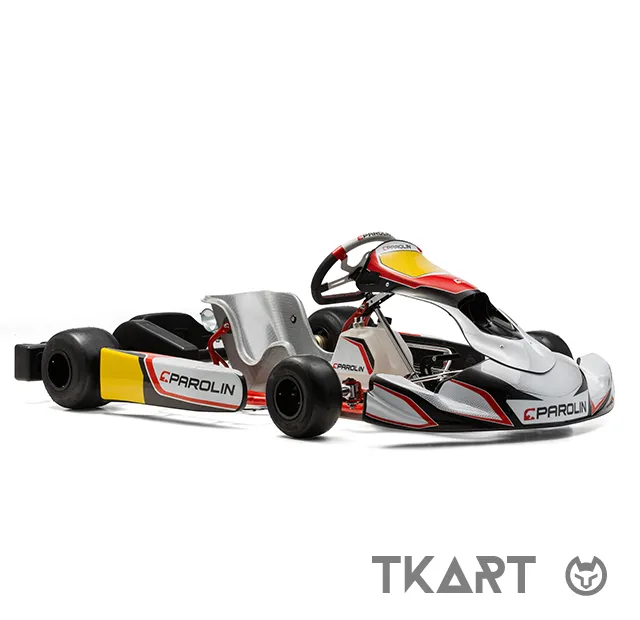

LE MANS M.Y. 2022: THE PAROLIN KART SPECIFIC FOR DIRECT DRIVE CLASSES













CIK-FIA 2022

HOMOLOGATION
The new Parolin Le Mans 2022 chassis is CIK-FIA 017-CH-60 approved.

OK

CATEGORY
The approval and the “double face” set by Parolin make it usable in all classes, but due to its structure this chassis is more suitable for direct drive classes.

30 / 32 mm

TUBES DIAMETER
The Parolin Le Mans chassis is made using both 30 mm and 32 mm diameter tubes, all 2 mm thick.

ROBOT

WELDING
Like all Parolin chassis, the Le Mans is also made through a fully robotic welding process.

ALLUMINIUM and MAGNESIUM

ACCESSORIES
All accessories are made of light aluminium alloy, while hubs and wheels are supplied as standard made of magnesium.

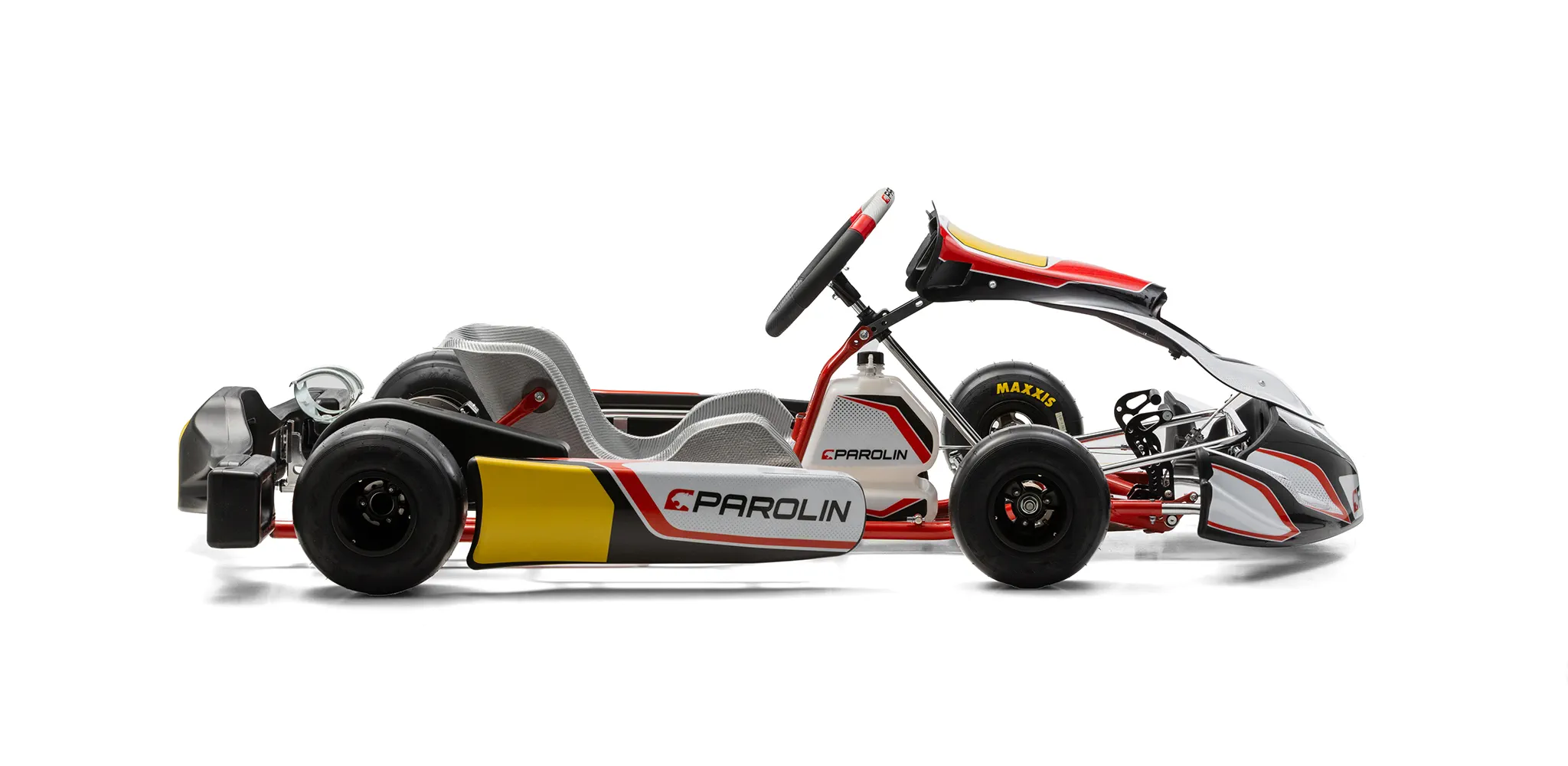

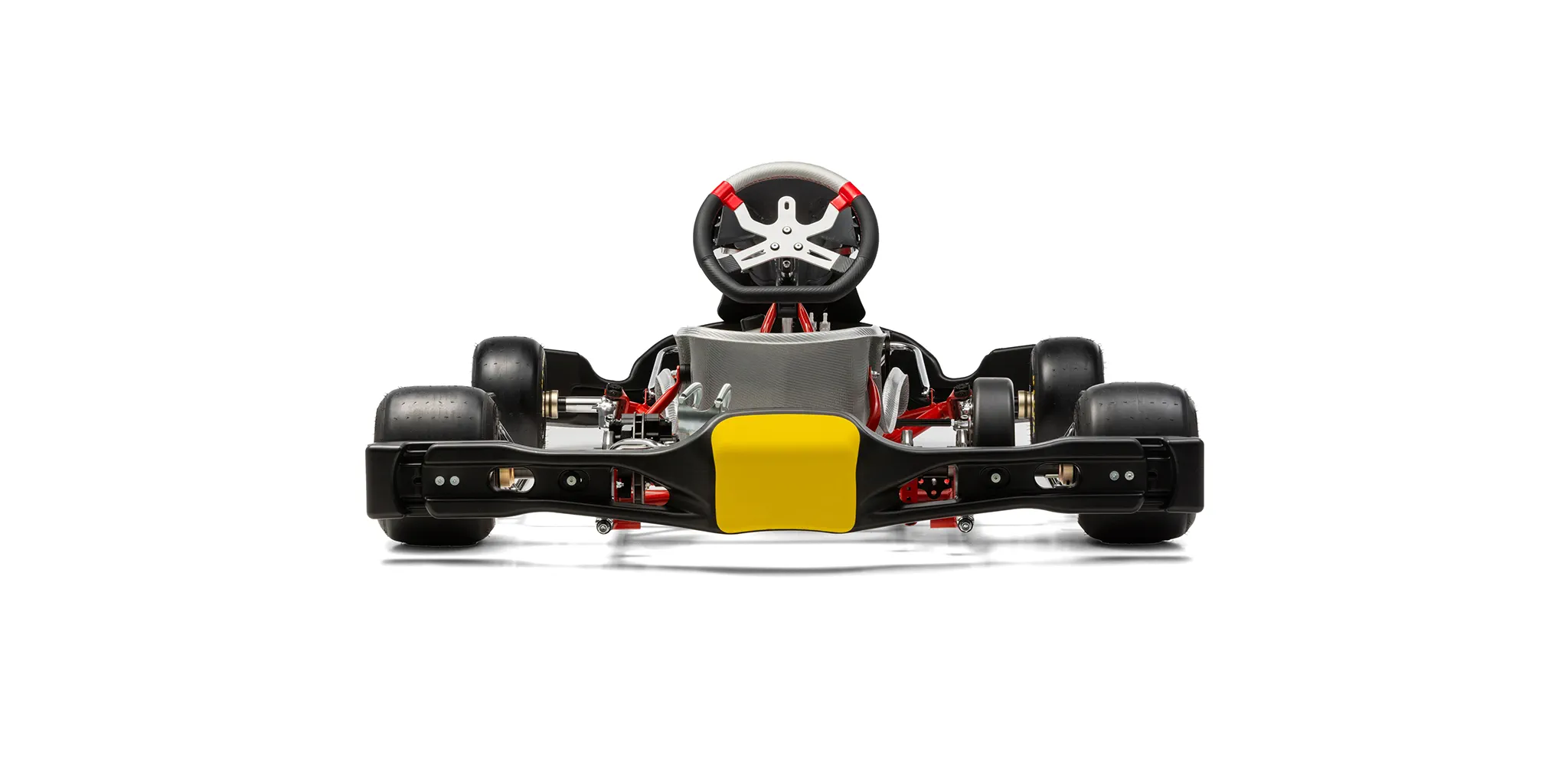

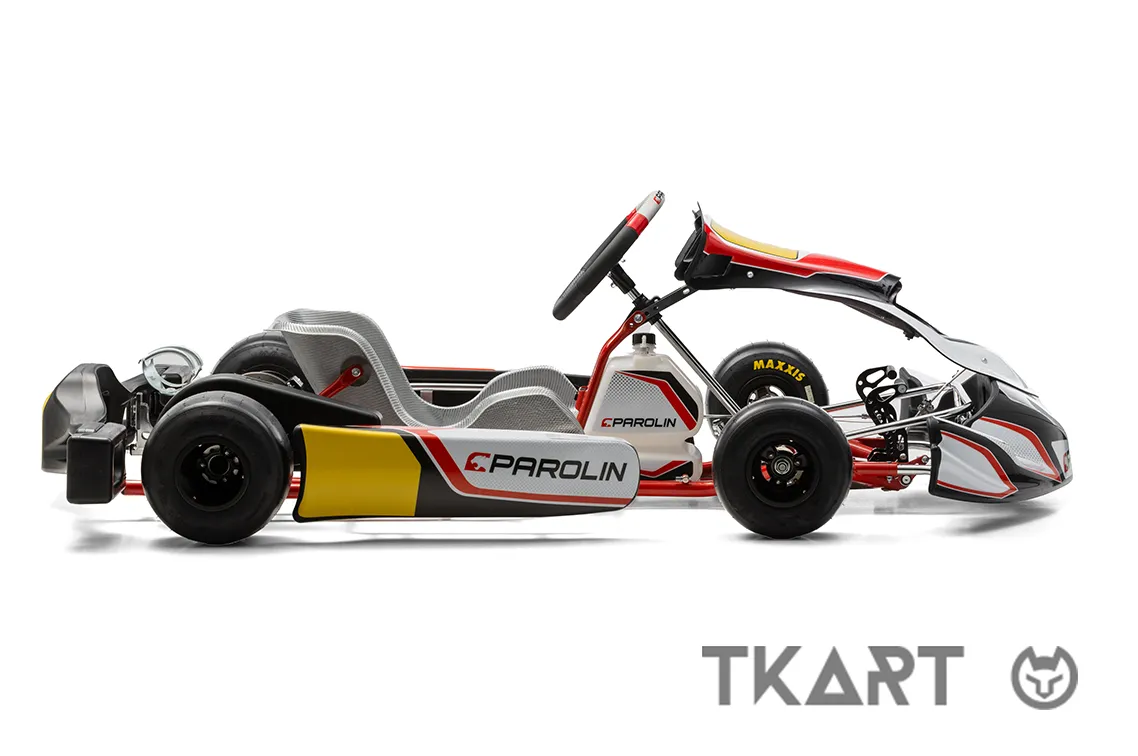

The Le Mans chassis is the model of the Parolin Racing Kart product range most suitable for the single-speed classes, although it is approved (and usable) for all classes. The new 2022 version of the chassis of the Italian manufacturers has the same shapes as the previous version. It is a "classic" design of the body, the result of the experience gained on the track by the Parolin Racing Team racing division, and an in-house research approach to fully improve both accessories and various parts of the chassis. Meticulous research, which involves materials, processes and treatments. All this to ensure a chassis that is both avant-garde and solid, as confirmed by the division, for the production of accessories, to prefer die-cast or extruded semi-finished products, rather than those obtained from the classic "solid piece", in favour of compactness and structural uniformity. In addition, Parolin Racing Kart produces most of the components of its karts in its own factory: this allows the company to have direct quality control, as well as to contain development times for each component.
The new Le Mans chassis, which faithfully follows the angles and measurements of its previous version (read here the article dedicated to the 2015 model year "Under review - Parolin Le Mans: details matter", then evolved with a 2018 version by TKART, not analysed), is built with chromium-molybdenum steel tubes that are 30 mm in diameter and 2 mm thick, except for the front crossbar (the one that connects the front Cs) which is 32 mm in diameter and 2 mm thick. As often happens, however, we are not allowed to precisely know the alloy of the steel used, or the treatments to which the chassis are subjected to obtain their typical torsional behaviour. It should also be specified that Parolin does not foresee different versions of the Le Mans model, depending on the markets or countries in which it is sold.

0%

    The Easy-Caster system: fixed point - and characteristic - of the adjustments at the front of the Parolin chassis.

    read more

    The front seat anchors are longer than before (+3 cm, length taken from the ground) to avoid interposing many thicknesses, which is often inconvenient in assembly activities.

    read more

    The steering column slide: a distinctive Parolin element that allows changing the Ackermann angle quickly.

    read more

    The new supplementary cross stringer which strengthens the engine attachment area.

    read more

    The caliper of the Le Mans braking system, dedicated to single-speed karts, is radial and is made from an extruded single piece. It is the same, among other things, used at the rear also in the braking system of the Parolin chassis in the shifter version.

    read more

    The look of the Le Mans remains unchanged, with Dynamica fairings (here is the detail on the 2018 model: “Focus Tech – Dynamica, the fairings for world champion karts by Parolin Racing“) which, on the occasion of the 2022 approvals, were adequate in terms of shock absorption capacity, as required by the increasingly stringent crash tests.
