Fine-tuning a kart's gear ratio:

5 real-world problems, 5 solutions

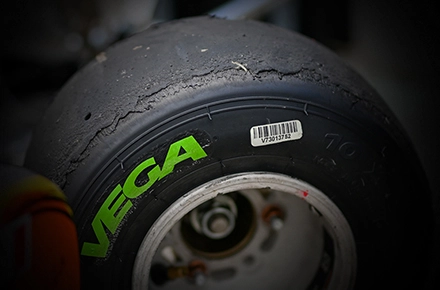

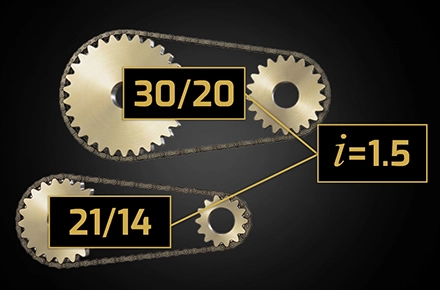

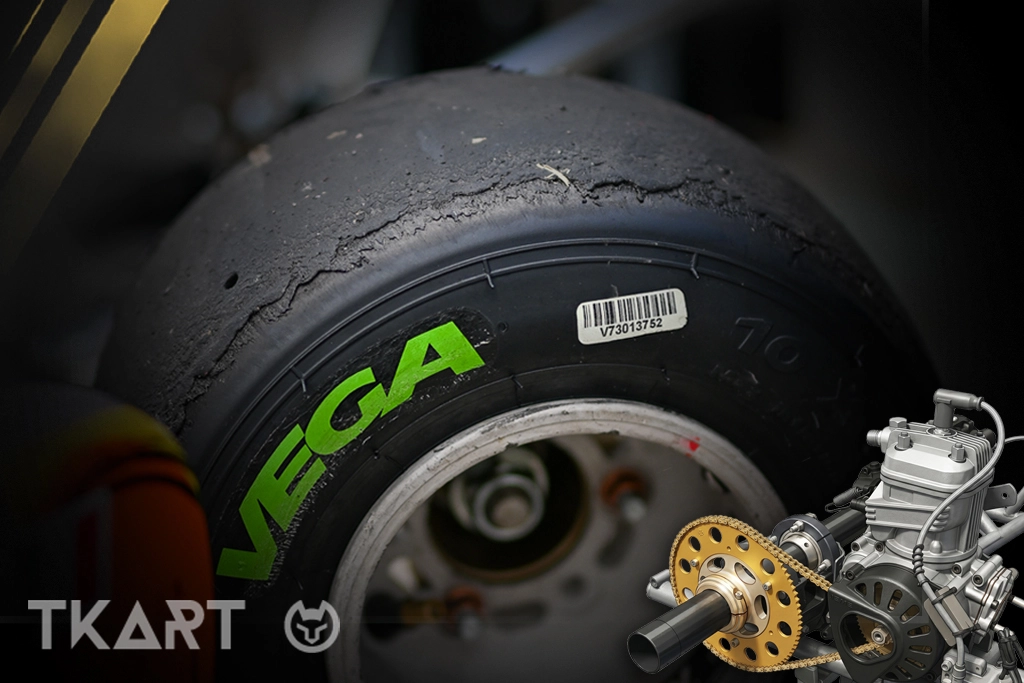

One of the most critical and often overlooked aspects of gear ratio adjustment is tire wear and degradation. As track sessions progress, tires undergo natural deterioration, significantly impacting their performance. Understanding how to adjust the gear ratio to these changes is crucial to maintain a high level of competitiveness. Worn tires lose grip, causing the kart to "slide", which means the vehicle will no longer be able to fully utilize the gear ratio (previously set with new tires), resulting in a gear ratio that is too “long”. It should be noted that when we talk about gear ratio, we're referring to a simple arithmetic operation that relates the number of teeth on the crown gear to the number on the pinion. For example, if we have a ratio of "17/25," where 17 are the pinion teeth and 25 are the crown gear teeth, the ratio would be measured with the formula "25/17" and would result in "1.47." If our ideal ratio of "17/25" becomes too long due to the tire wear discussed above, the correction we would need to make to the ratio would be in the order of hundredths of a point. So, returning to our example, we can say that for a shifter with a 17 sprocket, one crown tooth is worth approximately 0.06 ratio points. If we add this crown tooth, the ratio will increase by 0.06 points (reaching a result of 1.53), making it, in practice, "shorter." In light of all this, when tire wear leads to an increase in lap times of 3-5 tenths (especially on circuits with many hairpins that require many "restarts"), we would need to intervene with ratio changes of approximately "0.05". It should be very clearly emphasized that this is a purely indicative reference, just to give an order of magnitude, because there are many variables that could alter this reference.
