Squish in Kart Engines: What You Need to Know (and Common Mistakes) - Part 1 of 3

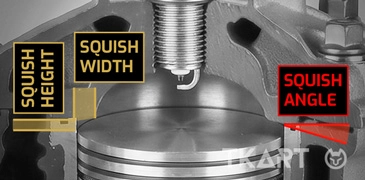

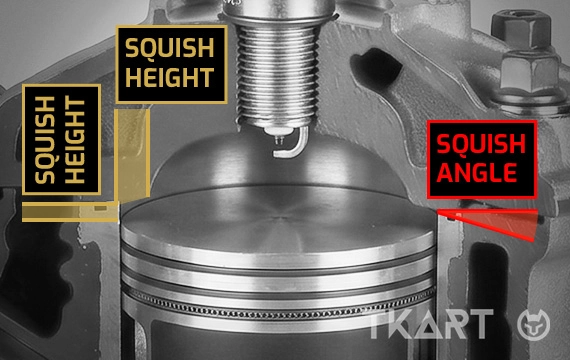

From a technical standpoint, squish is a fluid-dynamic phenomenon within the combustion chamber: a peripheral zone of the cylinder head, typically ring-shaped (known as the squish band), designed to work in synergy with the piston profile. During the final stages of compression—the term “squish” derives from the verb “to squish,” which means precisely “to compress, to crush”—this configuration forces the mixture to move rapidly toward the center of the chamber. The value of its height, expressed in millimeters, is certainly fundamental, as it determines how narrow the gap between the piston and the squish band is. However, squish alone is not sufficient to describe the engine’s behavior. Even with the same measurement, key values in the thermal cycle can vary significantly. Several parameters come into play: the width and inclination of the squish band (the so-called “squish angle”), the shape of the piston crown, the diameter and volume of the combustion chamber, as well as the geometric consistency among all these elements. All these factors directly influence how the mixture is moved and, consequently, how combustion occurs. Essentially, as the piston approaches TDC, the mixture in the peripheral area must not remain far from the spark plug; it is therefore compressed and forced toward the center of the combustion chamber, which tends to promote faster and more uniform combustion. For this reason, viewing squish as merely a distance can be useful only in practical terms. However, if we want to be more precise, from a technical standpoint, it must be viewed as the result of a set of geometric parameters that influence the movement of the mixture and the combustion process.
